TiCX
HDP TiCX is a further improvement on a TiCN coating exhibiting extreme hardness and toughness. TiCX is characterised by its outstanding anti-friction and anti-adhesion properties.

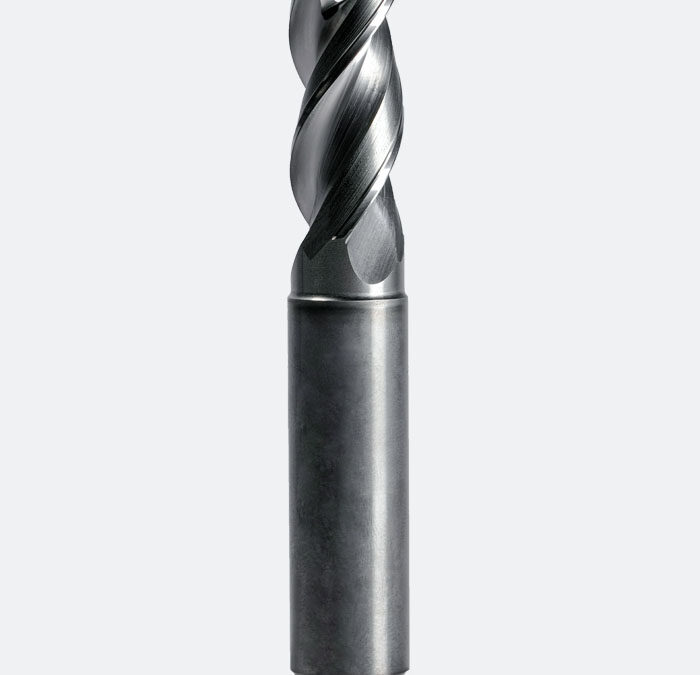

Maximum performance is achieved with TiCX in thread cutting and forming on alloyed and corrosion-resistant steels. TiCX is also an excellent choice in small gear hobbing, broaching, sawing with tools of high-speed steel.
Maximum performance is achieved with TiCX in thread cutting and forming on alloyed and corrosion-resistant steels. TiCX is also an excellent choice in small gear hobbing, broaching, sawing with tools of high-speed steel.
Specifications
| Coating material: | TiC based |
| Colour: | grey |
| Coating thickness [µm]: | 0.5-2 |
| Coating temperature [°C]: | < 500 |
| Nanohardness according to ISO 14577 HIT [GPa]: | 42 ± 4 |
| Coefficient of friction against steel (dry): | 0.15 |
| Max. application temperature [°C]: | 400 |
All values are dependent on the application, on the ambient environment and test conditions.
